首頁 > 產品 > 機床工具 > 切削刀具 > 平底銑刀

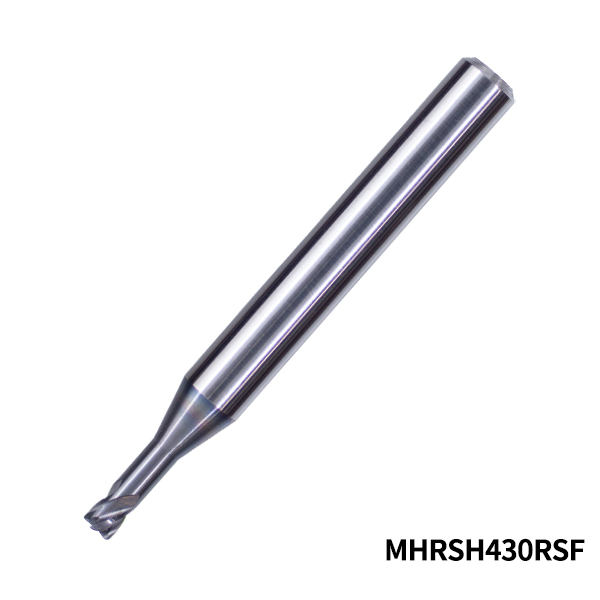

自營日本NS TOOL日進 4刃長頸圓鼻銑刀MHRSH430RSF

無限白金Plus涂層，高硬度鋼材高精度加工用4刃長頸圓鼻銑刀MHRSH430RSF
品牌
NS TOOL(日進)
產品分類
平底銑刀
型號
MHRSH430RSF
單位
件
配送倉庫
國內倉庫
貨期
預計7個工作日發貨
產品服務
當前產品的售前報價、售后安裝培訓與配件附件的采購，您可以直接聯系以下的NS TOOL(日進)品牌官方的區域經理了解。
官方熱線
區域 李經理： 189-2921-8517 （微信同號）
205個規格 點擊查看
服務保障
發票保障　正品保障
支付方式
支付寶 微信支付 銀行轉賬
品牌專區
服務說明

1、由思誠資源優選發貨，并提供售后服務

2、因庫存實時變化，具體發貨時間以實際發貨為準

思誠自營商城客服 電話：0769-22186189在線咨詢
共205個規格遇到問題了？采購管家來幫您聯系客服
型號、貨號 外徑 角半徑 刃長 柄徑 全長 價格 起訂（單位:件） 操作
08-00239-01002 0.1R0.010.08435加購詢價
- +
08-00239-01003 0.1R0.010.08435加購詢價
- +
08-00239-01503 0.15R0.010.12435加購詢價
- +
08-00239-01505 0.15R0.010.12435加購詢價
- +
08-00239-01523 0.15R0.020.12435加購詢價
- +
08-00239-01525 0.15R0.020.12435加購詢價
- +
08-00239-02203 0.2R0.020.15435加購詢價
- +
08-00239-02205 0.2R0.020.15435加購詢價
- +
08-00239-02207 0.2R0.020.15435加購詢價
- +
08-00239-02210 0.2R0.020.15435加購詢價
- +
08-00239-02403 0.2R0.050.15435加購詢價
- +
08-00239-02405 0.2R0.050.15435加購詢價
- +
08-00239-02407 0.2R0.050.15435加購詢價
- +
08-00239-02410 0.2R0.050.15435加購詢價
- +
08-00239-03205 0.3R0.020.25435加購詢價
- +
08-00239-03207 0.3R0.020.25435加購詢價
- +
08-00239-03210 0.3R0.020.25435加購詢價
- +
08-00239-03215 0.3R0.020.25435加購詢價
- +
08-00239-03405 0.3R0.050.25435加購詢價
- +
08-00239-03407 0.3R0.050.25435加購詢價
- +
08-00239-03410 0.3R0.050.25435加購詢價
- +
08-00239-03415 0.3R0.050.25435加購詢價
- +
08-00239-04205 0.4R0.020.3435加購詢價
- +
08-00239-04210 0.4R0.020.3435加購詢價
- +
08-00239-04215 0.4R0.020.3435加購詢價
- +
08-00239-04220 0.4R0.020.3435加購詢價
- +
08-00239-04405 0.4R0.050.3435加購詢價
- +
08-00239-04410 0.4R0.050.3435加購詢價
- +
08-00239-04415 0.4R0.050.3435加購詢價
- +
08-00239-04420 0.4R0.050.3435加購詢價
- +
08-00239-05210 0.5R0.020.4435加購詢價
- +
08-00239-05215 0.5R0.020.4435加購詢價
- +
08-00239-05220 0.5R0.020.4435加購詢價
- +
08-00239-05225 0.5R0.020.4435加購詢價
- +
08-00239-05410 0.5R0.050.4435加購詢價
- +
08-00239-05415 0.5R0.050.4435加購詢價
- +
08-00239-05420 0.5R0.050.4435加購詢價
- +
08-00239-05425 0.5R0.050.4435加購詢價
- +
08-00239-05510 0.5R0.10.4435加購詢價
- +
08-00239-05515 0.5R0.10.4435加購詢價
- +
08-00239-05520 0.5R0.10.4435加購詢價
- +
08-00239-05525 0.5R0.10.4435加購詢價
- +
08-00239-06210 0.6R0.020.5435加購詢價
- +
08-00239-06220 0.6R0.020.5435加購詢價
- +
08-00239-06230 0.6R0.020.5435加購詢價
- +
08-00239-06410 0.6R0.050.5435加購詢價
- +
08-00239-06420 0.6R0.050.5435加購詢價
- +
08-00239-06430 0.6R0.050.5435加購詢價
- +
08-00239-06510 0.6R0.10.5435加購詢價
- +
08-00239-06520 0.6R0.10.5435加購詢價
- +
08-00239-06530 0.6R0.10.5435加購詢價
- +
08-00239-08202 0.8R0.020.65435加購詢價
- +
08-00239-08203 0.8R0.020.65435加購詢價
- +
08-00239-08204 0.8R0.020.65435加購詢價
- +
08-00239-08402 0.8R0.050.65435加購詢價
- +
08-00239-08403 0.8R0.050.65435加購詢價
- +
08-00239-08404 0.8R0.050.65435加購詢價
- +
08-00239-08502 0.8R0.10.65435加購詢價
- +
08-00239-08503 0.8R0.10.65435加購詢價
- +
08-00239-08504 0.8R0.10.65435加購詢價
- +
08-00239-08602 0.8R0.20.65435加購詢價
- +
08-00239-08603 0.8R0.20.65435加購詢價
- +
08-00239-08604 0.8R0.20.65435加購詢價
- +
08-00239-10202 1R0.020.8435加購詢價
- +
08-00239-10203 1R0.020.8435加購詢價
- +
08-00239-10204 1R0.020.8435加購詢價
- +
08-00239-10205 1R0.020.8440加購詢價
- +
08-00239-10402 1R0.050.8435加購詢價
- +
08-00239-10403 1R0.050.8435加購詢價
- +
08-00239-10404 1R0.050.8435加購詢價
- +
08-00239-10405 1R0.050.8440加購詢價
- +
08-00239-10502 1R0.10.8435加購詢價
- +
08-00239-10503 1R0.10.8435加購詢價
- +
08-00239-10504 1R0.10.8435加購詢價
- +
08-00239-10505 1R0.10.8440加購詢價
- +
08-00239-10602 1R0.20.8435加購詢價
- +
08-00239-10603 1R0.20.8435加購詢價
- +
08-00239-10604 1R0.20.8435加購詢價
- +
08-00239-10605 1R0.20.8440加購詢價
- +
08-00239-10702 1R0.30.8435加購詢價
- +
08-00239-10703 1R0.30.8435加購詢價
- +
08-00239-10704 1R0.30.8435加購詢價
- +
08-00239-10705 1R0.30.8440加購詢價
- +
08-00239-15203 1.5R0.021.2435加購詢價
- +
08-00239-15204 1.5R0.021.2435加購詢價
- +
08-00239-15206 1.5R0.021.2440加購詢價
- +
08-00239-15208 1.5R0.021.2440加購詢價
- +
08-00239-15403 1.5R0.051.2435加購詢價
- +
08-00239-15404 1.5R0.051.2435加購詢價
- +
08-00239-15406 1.5R0.051.2440加購詢價
- +
08-00239-15408 1.5R0.051.2440加購詢價
- +
08-00239-15503 1.5R0.11.2435加購詢價
- +
08-00239-15504 1.5R0.11.2435加購詢價
- +
08-00239-15506 1.5R0.11.2440加購詢價
- +
08-00239-15508 1.5R0.11.2440加購詢價
- +
08-00239-15603 1.5R0.21.2435加購詢價
- +
08-00239-15604 1.5R0.21.2435加購詢價
- +
08-00239-15606 1.5R0.21.2440加購詢價
- +
08-00239-15608 1.5R0.21.2440加購詢價
- +
08-00239-15703 1.5R0.31.2435加購詢價
- +
08-00239-15704 1.5R0.31.2435加購詢價
- +
08-00239-15706 1.5R0.31.2440加購詢價
- +
08-00239-15708 1.5R0.31.2440加購詢價
- +
08-00239-15803 1.5R0.51.2435加購詢價
- +
08-00239-15804 1.5R0.51.2435加購詢價
- +
08-00239-15806 1.5R0.51.2440加購詢價
- +
08-00239-15808 1.5R0.51.2440加購詢價
- +
08-00239-20204 2R0.021.6435加購詢價
- +
08-00239-20206 2R0.021.6435加購詢價
- +
08-00239-20208 2R0.021.6440加購詢價
- +
08-00239-20210 2R0.021.6440加購詢價
- +
08-00239-20404 2R0.051.6435加購詢價
- +
08-00239-20406 2R0.051.6435加購詢價
- +
08-00239-20408 2R0.051.6440加購詢價
- +
08-00239-20410 2R0.051.6440加購詢價
- +
08-00239-20504 2R0.11.6435加購詢價
- +
08-00239-20506 2R0.11.6435加購詢價
- +
08-00239-20508 2R0.11.6440加購詢價
- +
08-00239-20510 2R0.11.6440加購詢價
- +
08-00239-20604 2R0.21.6435加購詢價
- +
08-00239-20606 2R0.21.6435加購詢價
- +
08-00239-20608 2R0.21.6440加購詢價
- +
08-00239-20610 2R0.21.6440加購詢價
- +
08-00239-20704 2R0.31.6435加購詢價
- +
08-00239-20706 2R0.31.6435加購詢價
- +
08-00239-20708 2R0.31.6440加購詢價
- +
08-00239-20710 2R0.31.6440加購詢價
- +
08-00239-20804 2R0.51.6435加購詢價
- +
08-00239-20806 2R0.51.6435加購詢價
- +
08-00239-20808 2R0.51.6440加購詢價
- +
08-00239-20810 2R0.51.6440加購詢價
- +
08-00239-30404 3R0.052.5645加購詢價
- +
08-00239-30406 3R0.052.5645加購詢價
- +
08-00239-30408 3R0.052.5645加購詢價
- +
08-00239-30410 3R0.052.5650加購詢價
- +
08-00239-30412 3R0.052.5650加購詢價
- +
08-00239-30415 3R0.052.5655加購詢價
- +
08-00239-30504 3R0.12.5645加購詢價
- +
08-00239-30506 3R0.12.5645加購詢價
- +
08-00239-30508 3R0.12.5645加購詢價
- +
08-00239-30510 3R0.12.5650加購詢價
- +
08-00239-30512 3R0.12.5650加購詢價
- +
08-00239-30515 3R0.12.5655加購詢價
- +
08-00239-30604 3R0.22.5645加購詢價
- +
08-00239-30606 3R0.22.5645加購詢價
- +
08-00239-30608 3R0.22.5645加購詢價
- +
08-00239-30610 3R0.22.5650加購詢價
- +
08-00239-30612 3R0.22.5650加購詢價
- +
08-00239-30615 3R0.22.5655加購詢價
- +
08-00239-30704 3R0.32.5645加購詢價
- +
08-00239-30706 3R0.32.5645加購詢價
- +
08-00239-30708 3R0.32.5645加購詢價
- +
08-00239-30710 3R0.32.5650加購詢價
- +
08-00239-30712 3R0.32.5650加購詢價
- +
08-00239-30715 3R0.32.5655加購詢價
- +
08-00239-30804 3R0.52.5645加購詢價
- +
08-00239-30806 3R0.52.5645加購詢價
- +
08-00239-30808 3R0.52.5645加購詢價
- +
08-00239-30810 3R0.52.5650加購詢價
- +
08-00239-30812 3R0.52.5650加購詢價
- +
08-00239-30815 3R0.52.5655加購詢價
- +
08-00239-40508 4R0.13.2645加購詢價
- +
08-00239-40512 4R0.13.2650加購詢價
- +
08-00239-40516 4R0.13.2655加購詢價
- +
08-00239-40520 4R0.13.2655加購詢價
- +
08-00239-40608 4R0.23.2645加購詢價
- +
08-00239-40612 4R0.23.2650加購詢價
- +
08-00239-40616 4R0.23.2655加購詢價
- +
08-00239-40620 4R0.23.2655加購詢價
- +
08-00239-40708 4R0.33.2645加購詢價
- +
08-00239-40712 4R0.33.2650加購詢價
- +
08-00239-40716 4R0.33.2655加購詢價
- +
08-00239-40720 4R0.33.2655加購詢價
- +
08-00239-40808 4R0.53.2645加購詢價
- +
08-00239-40812 4R0.53.2650加購詢價
- +
08-00239-40816 4R0.53.2655加購詢價
- +
08-00239-40820 4R0.53.2655加購詢價
- +
08-00239-50515 5R0.14650加購詢價
- +
08-00239-50520 5R0.14655加購詢價
- +
08-00239-50615 5R0.24650加購詢價
- +
08-00239-50620 5R0.24655加購詢價
- +
08-00239-50715 5R0.34650加購詢價
- +
08-00239-50720 5R0.34655加購詢價
- +
08-00239-50815 5R0.54650加購詢價
- +
08-00239-50820 5R0.54655加購詢價
- +
08-00239-60512 6R0.15645加購詢價
- +
08-00239-60518 6R0.15650加購詢價
- +
08-00239-60524 6R0.15660加購詢價
- +
08-00239-60530 6R0.15665加購詢價
- +
08-00239-60612 6R0.25645加購詢價
- +
08-00239-60618 6R0.25650加購詢價
- +
08-00239-60624 6R0.25660加購詢價
- +
08-00239-60630 6R0.25665加購詢價
- +
08-00239-60712 6R0.35645加購詢價
- +
08-00239-60718 6R0.35650加購詢價
- +
08-00239-60724 6R0.35660加購詢價
- +
08-00239-60730 6R0.35665加購詢價
- +
08-00239-60812 6R0.55645加購詢價
- +
08-00239-60818 6R0.55650加購詢價
- +
08-00239-60824 6R0.55660加購詢價
- +
08-00239-60830 6R0.55665加購詢價
- +
08-00239-60912 6R15645加購詢價
- +
08-00239-60918 6R15650加購詢價
- +
08-00239-60924 6R15660加購詢價
- +
08-00239-60930 6R15665加購詢價
- +

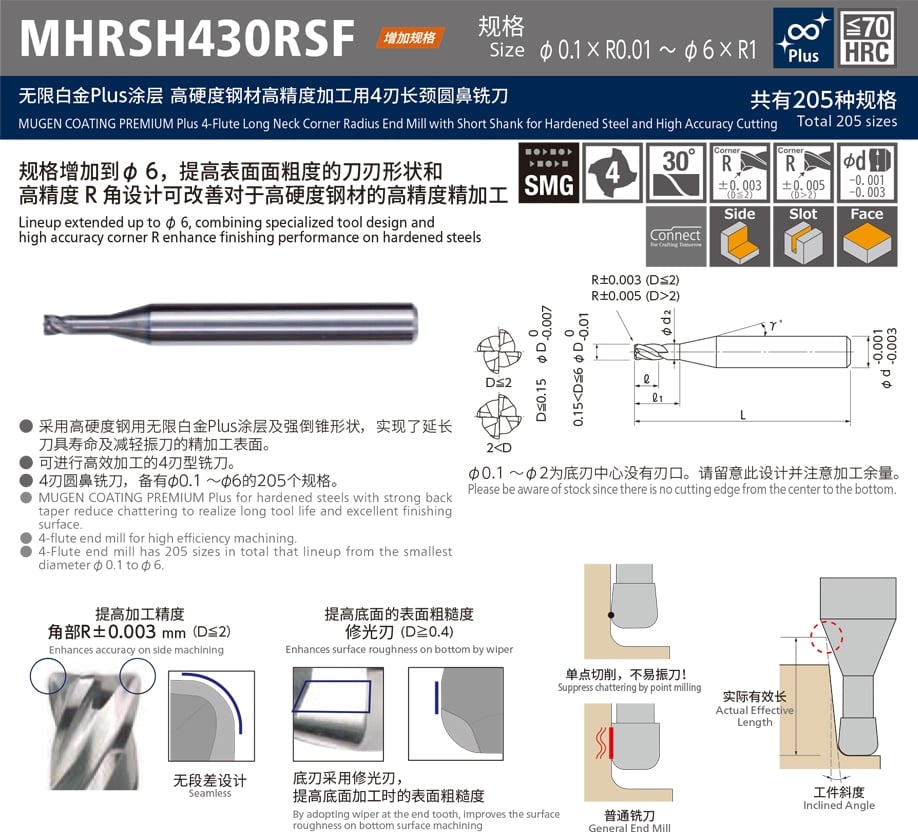

(D)外徑(R)角半徑(?1)頸長(?)刃長(d2)頸徑(γ)頸角(d)柄徑(L)全長相對于工件斜度的有效長
30′1°1°30′2°3°
0.1R0.010.20.080.08515°4350.230.240.250.260.28
0.30.080.08515°4350.330.350.360.370.4
0.15R0.010.30.120.13515°4350.330.350.360.370.4
0.50.120.13515°4350.540.560.580.60.65
R0.020.30.120.13515°4350.330.340.360.370.4
0.50.120.13515°4350.540.560.580.60.65
0.2R0.020.30.150.1815°4350.340.350.370.380.41
0.50.150.1815°4350.550.570.590.610.66
0.750.150.1815°4350.810.840.870.90.97
10.150.1815°4351.071.11.141.181.28
R0.050.30.150.1815°4350.340.350.360.380.4
0.50.150.1815°4350.550.570.590.610.65
0.750.150.1815°4350.810.830.860.890.96
10.150.1815°4351.071.11.141.181.27
0.3R0.020.50.250.2815°4350.550.570.590.610.66
0.750.250.2815°4350.810.840.870.90.97
10.250.2815°4351.071.11.141.181.28
1.50.250.2815°4351.581.641.71.761.9
R0.050.50.250.2815°4350.550.570.590.610.65
0.750.250.2815°4350.810.830.860.890.96
10.250.2815°4351.071.11.141.181.27
1.50.250.2815°4351.581.641.691.761.89
0.4R0.020.50.30.3715°4350.570.590.610.630.68
10.30.3715°4351.091.121.161.211.3
1.50.30.3715°4351.61.661.721.781.92
20.30.3715°4352.122.192.272.362.55
R0.050.50.30.3715°4350.570.590.610.630.67
10.30.3715°4351.081.121.161.21.3
1.50.30.3715°4351.61.661.711.781.92
20.30.3715°4352.122.192.272.352.54
0.5R0.0210.40.4615°4351.111.141.181.231.33
1.50.40.4615°4351.621.681.741.81.95
20.40.4615°4352.142.212.292.382.57
2.50.40.4615°4352.662.752.852.953.19
R0.0510.40.4615°4351.11.141.181.221.32
1.50.40.4615°4351.621.681.731.81.94
20.40.4615°4352.142.212.292.372.56
2.50.40.4615°4352.652.752.842.953.18
R0.110.40.4615°4351.11.141.181.221.31
1.50.40.4615°4351.621.671.731.791.93
20.40.4615°4352.142.212.282.372.55
2.50.40.4615°4352.652.742.842.943.17
0.6R0.0210.50.5615°4351.111.141.181.231.33
20.50.5615°4352.142.212.292.382.57
30.50.5615°4353.173.283.43.533.81
R0.0510.50.5615°4351.11.141.181.221.32
20.50.5615°4352.142.212.292.372.56
30.50.5615°4353.173.283.43.523.81
R0.110.50.5615°4351.11.141.181.221.31
20.50.5615°4352.142.212.282.372.55
30.50.5615°4353.173.283.393.523.79
0.8R0.0220.650.7615°4352.142.212.292.382.57
30.650.7615°4353.173.283.43.533.81
40.650.7615°4354.214.354.514.685.06
R0.0520.650.7615°4352.142.212.292.372.56
30.650.7615°4353.173.283.43.523.81
40.650.7615°4354.214.354.514.675.05
R0.120.650.7615°4352.142.212.282.372.55
30.650.7615°4353.173.283.393.523.79
40.650.7615°4354.24.354.54.675.04
R0.220.650.7615°4352.132.22.272.352.53
30.650.7615°4353.173.273.383.53.77
40.650.7615°4354.24.344.494.655.01
1R0.0220.80.9515°4352.162.232.312.42.59
30.80.9515°4353.193.33.423.553.84
40.80.9515°4354.234.374.534.75.08
50.80.9515°4405.265.445.645.856.32
R0.0520.80.9515°4352.162.232.312.392.59
30.80.9515°4353.193.33.423.543.83
40.80.9515°4354.224.374.534.695.07
50.80.9515°4405.265.445.635.846.31
R0.120.80.9515°4352.162.232.32.392.57
30.80.9515°4353.193.33.413.543.82
40.80.9515°4354.224.374.524.695.06
50.80.9515°4405.265.445.635.846.3
1R0.220.80.9515°4352.152.222.292.372.55
30.80.9515°4353.193.293.43.523.79
40.80.9515°4354.224.364.514.675.04
50.80.9515°4405.255.435.625.826.28
R0.320.80.9515°4352.152.212.282.362.53
30.80.9515°4353.183.283.393.513.77
40.80.9515°4354.224.354.54.665.01
50.80.9515°4405.255.425.615.816.26
1.5R0.0231.21.4315°4353.233.343.463.593.88
41.21.4315°4354.264.414.574.745.13
61.21.4315°4406.336.556.797.047.61
81.21.4315°4408.48.6999.3410.1
R0.0531.21.4315°4353.233.343.463.593.87
41.21.4315°4354.264.414.574.745.12
61.21.4315°4406.336.556.787.047.6
81.21.4315°4408.48.6999.3410.09
R0.131.21.4315°4353.233.343.453.583.86
41.21.4315°4354.264.414.564.735.11
61.21.4315°4406.336.556.787.037.59
81.21.4315°4408.48.6999.3310.08
R0.231.21.4315°4353.223.333.443.573.84
41.21.4315°4354.264.44.554.725.08
61.21.4315°4406.336.546.777.017.57
81.21.4315°4408.398.688.989.3110.06
R0.331.21.4315°4353.223.323.433.553.82
41.21.4315°4354.254.394.544.75.06
61.21.4315°4406.326.536.7677.55
81.21.4315°4408.398.678.979.310.03
R0.531.21.4315°4353.213.313.413.523.77
41.21.4315°4354.254.384.524.675.01
61.21.4315°4406.326.526.746.977.5
81.21.4315°4408.388.668.959.279.98
2R0.0241.61.9115°4354.34.454.614.785.17
61.61.9115°4356.376.596.837.087.66
81.61.9115°4408.448.739.059.3810.14
101.61.9115°44010.510.8711.2611.6812.63
R0.0541.61.9115°4354.34.454.614.785.16
61.61.9115°4356.376.596.837.087.65
81.61.9115°4408.448.739.049.3810.14
101.61.9115°44010.510.8711.2611.6812.62
R0.141.61.9115°4354.34.454.64.775.15
61.61.9115°4356.376.596.827.077.64
81.61.9115°4408.438.739.049.3710.13
101.61.9115°44010.510.8611.2511.6712.61
R0.241.61.9115°4354.34.444.594.765.13
61.61.9115°4356.366.586.817.067.62
81.61.9115°4408.438.729.039.3610.1
101.61.9115°44010.510.8611.2411.6612.59
R0.341.61.9115°4354.294.434.584.745.11
61.61.9115°4356.366.576.87.047.59
81.61.9115°4408.438.719.029.3410.08
101.61.9115°44010.510.8511.2311.6412.56
R0.541.61.9115°4354.294.424.564.715.06
61.61.9115°4356.356.566.787.017.54
81.61.9115°4408.428.78.999.3110.03
101.61.9115°44010.4910.8411.2111.6112.52
3R0.0542.52.8515°6454.424.574.734.915.3
62.52.8515°6456.486.716.957.217.79
82.52.8515°6458.558.859.179.5110.28
102.52.8515°65010.6210.9911.3811.8112.76
122.52.8515°65012.6913.1313.614.1115.25
152.52.8515°65515.7916.3416.9217.5618.98
R0.142.52.8515°6454.424.574.734.95.29
62.52.8515°6456.486.716.947.27.78
82.52.8515°6458.558.849.169.510.26
102.52.8515°65010.6210.9811.3811.812.75
122.52.8515°65012.6813.1213.5914.115.24
152.52.8515°65515.7916.3316.9217.5518.97
R0.242.52.8515°6454.414.564.724.895.27
62.52.8515°6456.486.76.937.197.75
82.52.8515°6458.558.849.159.4910.24
102.52.8515°65010.6110.9811.3711.7912.73
122.52.8515°65012.6813.1213.5814.0915.21
152.52.8515°65515.7816.3316.9117.5418.94
R0.342.52.8515°6454.414.554.714.875.24
62.52.8515°6456.486.696.927.177.73
82.52.8515°6458.548.839.149.4710.22
102.52.8515°65010.6110.9711.3611.7712.7
122.52.8515°65012.6813.1113.5714.0715.19
152.52.8515°65515.7816.3216.917.5218.92
R0.542.52.8515°6454.44.544.694.845.2
62.52.8515°6456.476.686.97.147.68
82.52.8515°6458.548.829.129.4410.17
102.52.8515°65010.610.9611.3311.7412.66
122.52.8515°65012.6713.113.5514.0415.14
152.52.8515°65515.7716.3116.8817.4918.87
4R0.183.23.815°6458.658.949.269.6110.38
123.23.815°65012.7813.2213.714.2115.35
163.23.815°65516.9217.518.1318.81Free
203.23.815°65521.0521.7822.5623.41Free
R0.283.23.815°6458.648.949.259.5910.36
123.23.815°65012.7813.2213.6914.1915.33
163.23.815°65516.9117.518.1218.79Free
203.23.815°65521.0521.7722.5523.39Free
R0.383.23.815°6458.648.939.249.5810.33
123.23.815°65012.7713.2113.6814.1815.31
163.23.815°65516.9117.4918.1118.78Free
203.23.815°65521.0421.7722.5423.38Free
R0.583.23.815°6458.638.929.229.5510.29
123.23.815°65012.7713.213.6514.1515.26
163.23.815°65516.917.4718.0918.75Free
203.23.815°65521.0421.7522.5223.35Free
5R0.11544.7515°65015.9816.5317.13FreeFree
2044.7515°65521.1521.88FreeFreeFree
R0.21544.7515°65015.9816.5317.12FreeFree
2044.7515°65521.1421.87FreeFreeFree
R0.31544.7515°65015.9716.5217.1FreeFree
2044.7515°65521.1421.87FreeFreeFree
R0.51544.7515°65015.9716.517.08FreeFree
2044.7515°65521.1321.85FreeFreeFree
6R0.11255.7-645FreeFreeFreeFreeFree
1855.7-650FreeFreeFreeFreeFree
2455.7-660FreeFreeFreeFreeFree
3055.7-665FreeFreeFreeFreeFree
R0.21255.7-645FreeFreeFreeFreeFree
1855.7-650FreeFreeFreeFreeFree
2455.7-660FreeFreeFreeFreeFree
3055.7-665FreeFreeFreeFreeFree
R0.31255.7-645FreeFreeFreeFreeFree
1855.7-650FreeFreeFreeFreeFree
2455.7-660FreeFreeFreeFreeFree
3055.7-665FreeFreeFreeFreeFree
R0.51255.7-645FreeFreeFreeFreeFree
1855.7-650FreeFreeFreeFreeFree
2455.7-660FreeFreeFreeFreeFree
3055.7-665FreeFreeFreeFreeFree
R11255.7-645FreeFreeFreeFreeFree
1855.7-650FreeFreeFreeFreeFree
2455.7-660FreeFreeFreeFreeFree
3055.7-665FreeFreeFreeFreeFree

加工材料高速鋼·高硬度鋼SKH51·SKD11 (~62HRC)高速鋼SKH55·HAP40 (~66HRC)高速鋼SKH57·HAP72 (~70HRC)
外徑
角半徑頸長
外徑與頸長之比主軸轉速進給速度切深量主軸轉速進給速度切深量主軸轉速進給速度切深量
min-1mm/minap mmae mmmin-1mm/minap mmae mmmin-1mm/minap mmae mm
30.0541.313,0002,0000.050.710,0001,4000.050.68,0001,1000.030.6
6211,5001,7000.050.79,5001,3000.050.67,5001,0000.030.6
82.710,5001,5000.050.78,0001,1000.050.66,0008000.030.6
103.310,0001,3500.050.77,5001,0000.050.66,0007500.030.6
12410,0001,3500.040.77,5001,0000.040.66,0007500.0240.6
1559,0001,2000.030.77,0009000.030.65,5006500.0180.6
0.141.313,0002,0000.070.710,0001,4000.050.68,0001,1000.030.6
6211,5001,7000.070.79,5001,3000.050.67,5001,0000.030.6
82.710,5001,5000.070.78,0001,1000.050.66,0008000.030.6
103.310,0001,3500.070.77,5001,0000.050.66,0007500.030.6
12410,0001,3500.060.77,5001,0000.040.66,0007500.0240.6
1559,0001,2000.050.77,0009000.030.65,5006500.0180.6
0.241.313,0002,0000.070.710,0001,4000.050.68,0001,1000.030.6
6211,5001,7000.070.79,5001,3000.050.67,5001,0000.030.6
82.710,5001,5000.070.78,0001,1000.050.66,0008000.030.6
103.310,0001,3500.070.77,5001,0000.050.66,0007500.030.6
12410,0001,3500.060.77,5001,0000.040.66,0007500.0240.6
1559,0001,2000.050.77,0009000.030.65,5006500.0180.6
0.341.313,0002,0000.070.710,0001,4000.050.68,0001,1000.030.6
6211,5001,7000.070.79,5001,3000.050.67,5001,0000.030.6
82.710,5001,5000.070.78,0001,1000.050.66,0008000.030.6
103.310,0001,3500.070.77,5001,0000.050.66,0007500.030.6
12410,0001,3500.060.77,5001,0000.040.66,0007500.0240.6
1559,0001,2000.050.77,0009000.030.65,5006500.0180.6
0.541.313,0002,0000.070.710,0001,4000.050.68,0001,1000.030.6
6211,5001,7000.070.79,5001,3000.050.67,5001,0000.030.6
82.710,5001,5000.070.78,0001,1000.050.66,0008000.030.6
103.310,0001,3500.070.77,5001,0000.050.66,0007500.030.6
12410,0001,3500.060.77,5001,0000.040.66,0007500.0240.6
1559,0001,2000.050.77,0009000.030.65,5006500.0180.6
40.1828,5001,8000.0817,0001,3000.060.85,5001,0000.0360.8
1238,5001,8000.0717,0001,3000.050.85,5001,0000.030.8
1647,5001,5000.0615,5001,0000.050.85,2009000.030.8
2056,0001,2000.0614,5008000.050.84,0006500.030.8
0.2828,5001,8000.0817,0001,3000.060.85,5001,0000.0360.8
1238,5001,8000.0717,0001,3000.050.85,5001,0000.030.8
1647,5001,5000.0615,5001,0000.050.85,2009000.030.8
2056,0001,2000.0614,5008000.050.84,0006500.030.8
0.3828,5001,8000.0817,0001,3000.060.85,5001,0000.0360.8
1238,5001,8000.0717,0001,3000.050.85,5001,0000.030.8
1647,5001,5000.0615,5001,0000.050.85,2009000.030.8
2056,0001,2000.0614,5008000.050.84,0006500.030.8
0.5828,5001,8000.0817,0001,3000.060.85,5001,0000.0360.8
1238,5001,8000.0717,0001,3000.050.85,5001,0000.030.8
1647,5001,5000.0615,5001,0000.050.85,2009000.030.8
2056,0001,2000.0614,5008000.050.84,0006500.030.8
50.11537,0001,7000.081.65,5001,3000.061.24,4009000.0361.2
2046,0001,4000.071.65,0001,1000.051.24,0007500.031.2
0.21537,0001,7000.081.65,5001,3000.061.24,4009000.0361.2
2046,0001,4000.071.65,0001,1000.051.24,0007500.031.2
0.31537,0001,7000.081.65,5001,3000.061.24,4009000.0361.2
2046,0001,4000.071.65,0001,1000.051.24,0007500.031.2
0.51537,0001,7000.081.65,5001,3000.061.24,4009000.0361.2
2046,0001,4000.071.65,0001,1000.051.24,0007500.031.2
60.11225,5001,8000.0824,5001,4000.061.53,6001,0000.0361.5
1835,0001,5000.0824,0001,1000.061.53,0008000.0361.5
2444,5001,3000.0723,5009000.051.52,7007000.0361.5
3053,0008000.0723,0006500.051.52,3005000.031.5
0.21225,5001,8000.0824,5001,4000.061.53,6001,0000.0361.5
1835,0001,5000.0824,0001,1000.061.53,0008000.0361.5
2444,5001,3000.0723,5009000.051.52,7007000.0361.5
3053,0008000.0723,0006500.051.52,3005000.031.5
0.31225,5001,8000.0824,5001,4000.061.53,6001,0000.0361.5
1835,0001,5000.0824,0001,1000.061.53,0008000.0361.5
2444,5001,3000.0723,5009000.051.52,7007000.0361.5
3053,0008000.0723,0006500.051.52,3005000.031.5
0.51225,5001,8000.0824,5001,4000.061.53,6001,0000.0361.5
1835,0001,5000.0824,0001,1000.061.53,0008000.0361.5
2444,5001,3000.0723,5009000.051.52,7007000.0361.5
3053,0008000.0723,0006500.051.52,3005000.031.5
11225,5001,8000.0824,5001,4000.061.53,6001,0000.0361.5
1835,0001,5000.0824,0001,1000.061.53,0008000.0361.5
2444,5001,3000.0723,5009000.051.52,7007000.0361.5
3053,0008000.0723,0006500.051.52,3005000.031.5

思誠資源為您提供：日本NS TOOL日進 4刃長頸圓鼻銑刀MHRSH430RSF的采購報價、NS TOOL(日進)MHRSH430RSF型號參數、規格圖片、PDF畫冊等資料，如您想了解更多關于NS TOOL(日進)正品品牌的其他平底銑刀資料與產品貨期庫存、行情價格，就在思誠資源MRO商城。

!

備注：因廠家會在沒有任何提前通知的情況下更改產品包裝、產地或者一些附件，本公司不能確?？蛻羰盏降呢浳锱c思誠資源網站提供的產品圖片、產地、附件說明等完全一致。若本網站沒有及時更新，敬請諒解！

選配推薦
    日本佑能UNION 2刃CRN-ES2000平刀立銑刀 平底銑刀

    日本佑能UNION 2刃CRN-ES2000平刀立銑刀 平

    品牌：UNION(佑能)

    型號：G5ACC5C8A29751
    日本NS TOOL日進 4刃長頸圓鼻銑刀MHRSH430RSF

    日本NS TOOL日進 4刃長頸圓鼻銑刀MHRSH430R

    品牌：NS TOOL(日進)

    型號：MHRSH430RSF
    日本佑能UNION 4刃CRN-ES4000平刀立銑刀 平底銑刀

    日本佑能UNION 4刃CRN-ES4000平刀立銑刀 平

    品牌：UNION(佑能)

    型號：G5ACC641C8F5B8
    日本佑能UNION四刃CXES平刀立銑刀 平底銑刀

    日本佑能UNION四刃CXES平刀立銑刀 平底銑刀

    品牌：UNION(佑能)

    型號：G5ACAC6CB88B0F
    日本佑能UNION四刃HMES SP平刀立銑刀 平底銑刀

    日本佑能UNION四刃HMES SP平刀立銑刀 平底

    品牌：UNION(佑能)

    型號：G5ACB2095BD9DB
    日本NS TOOL日進 PCD球頭銑刀PCDRB

    日本NS TOOL日進 PCD球頭銑刀PCDRB

    品牌：NS TOOL(日進)

    型號：PCDRB
    SCZY思誠資源 SC-G0006 4頭CNC機床氣動卡盤

    SCZY思誠資源 SC-G0006 4頭CNC機床氣動卡盤

    品牌：SCZY(思誠資源)

    型號：SC-G0006
    SCZY思誠資源 SC-G0003 氣動卡盤配多用途底板

    SCZY思誠資源 SC-G0003 氣動卡盤配多用途底

    品牌：SCZY(思誠資源)

    型號：SC-G0003
    日本NS TOOL日進 CBN超精加工用球頭銑刀SFB200

    日本NS TOOL日進 CBN超精加工用球頭銑刀SFB

    品牌：NS TOOL(日進)

    型號：SFB200
    日本NS TOOL日進 4刃長頸圓鼻銑刀MHRSH430RSF

    日本NS TOOL日進 4刃長頸圓鼻銑刀MHRSH430R

    品牌：NS TOOL(日進)

    型號：MHRSH430RSF
    常被一起瀏覽的商品
    205種規格
    日本NS TOOL日進 4刃長頸圓鼻銑刀MHRSH430RSF
    自營
    日本NS TOOL日進 4刃長頸圓鼻銑刀MHRSH430R

    型號：MHRSH430RSF

    NS TOOL(日進)預計7個工作日發貨
    日本佑能UNION 4刃CRN-ES4000平刀立銑刀 平底銑刀
    自營
    日本佑能UNION 4刃CRN-ES4000平刀立銑刀 平

    型號：G5ACC641C8F5B8

    UNION(佑能)
    日本佑能UNION 2刃CRN-ES2000平刀立銑刀 平底銑刀
    自營
    日本佑能UNION 2刃CRN-ES2000平刀立銑刀 平

    型號：G5ACC5C8A29751

    UNION(佑能)
    日本佑能UNION四刃CXES平刀立銑刀 平底銑刀
    自營
    日本佑能UNION四刃CXES平刀立銑刀 平底銑刀

    型號：G5ACAC6CB88B0F

    UNION(佑能)
    日本佑能UNION四刃HMES SP平刀立銑刀 平底銑刀
    自營
    日本佑能UNION四刃HMES SP平刀立銑刀 平底

    型號：G5ACB2095BD9DB

    UNION(佑能)
    加入購物車成功!
    繼續購物
    去結算
    關于思誠
    關于我們 聯系我們 招聘信息 企業動態
    購物指南
    購物流程 注冊會員 使用條款 售后服務
    支付/配送
    簽收驗貨 支付方式 何時出庫 配送方式
    特色服務
    訂單狀態 退貨保障 會員折扣 顧客必讀
    客服電話

    售前/售后 0769-22186189

    郵箱 info@sczy.com

    工作時間

    周一到周五 8:00-18:00

    周六 8:30-17:00 周日休息

    掃一掃立即了解我們

    立即微信咨詢

    思誠資源(www.coloradomelons.com)高端制造服務平臺，始終堅持為客戶提供優質而穩定的產品及服務。同時對接國內外工廠，引進國際先進的產品及技術，實現產品系統報價、售后服務、物流等信息進行集成化管理。

    聲明細則：價格、規格配備及產品供應狀況隨時更改，恕不另行通知。 我們將盡力檢查錯誤，但不負責任何由于疏忽造成的網頁上的錯誤。

    鄭重聲明：思誠科技Mro工業品官方正全力對網站所有內容進行嚴格審查和必要的修改，以確保完全遵守相關法律法規。并在此聲明，頁面中廣告法極限詞均是無效的。如您發現可能違規的內容，請立即與我們聯系，我們將迅速予以處理。

    Copyright ? SCZY.com 2025 All Rights Reserved 粵ICP備10219891號-6 網站地圖

    我的

    咨詢

    購物車

    詢價

    瀏覽
    記錄

    頂部
    在線客服

    微信掃碼溝通，無需添加好友

     0769-22186189
  • 九九热在线视频,岛国免费动作片av无码资源,美女视频黄色网站,黄色网无码在线国产强奸
